Product Types
Our range of battery chargers are designed for any application such as Marine, Boat, Golf Cart, Golf Caddies, Wheelchairs, Scooters, audio back up systems EV, RV and many other applications. Our Charger are designed to charge Lead Acid, Sealed Lead Acid(SLA) and Gel Batteries.
KEY FEATURES
Small size & light weight: Portability is a major feature. The charger can be installed on-board.
Universal input: Any voltage from 90VAC to 264VAC (without any switch). This means you only need one charger for the whole world.
- :: MEDICAL APPROVED 48W Battery Charger :: 2404SRM
- Universal AC Input
24VDC at 2A Output - Switched Mode Medical Approved Battery Charger
UL,CSA, CE for medical standards
UL2601-1 & cUL, EN60601
This charger can be indefinitely left connected to the battery without causing any harm to it.
Click to Download Datasheet
- :: IP54 Switched Mode Battery Charger 860W :: 24060SRU
- An IP54 rated battery charger suitable for charging any Gel, Sealed & Wet lead acid batteries.
- 90-264VAC INPUT
+31VDC +/-0.2VDC approx 3 Hours at 29.5A - 30.5A
NO FAN - Convectional Cooling
- Click to Download Datasheet
- :: ON BOARD (Internal) Battery Charger :: 2408R
- Totally Automatic Switched Mode Battery Charger suitable for ON Board (Internal) and External Applications.
- 230VAC Input
24VDC at 3A Constant Current, equivalent to 6A tapered charging time
Third output wire provides an interlock signal that will prohibit the operation of the vehicles motor controller whenever the charger is plugged in to an AC source.
This charger can be connected to a battery all the time with no damage to the battery. - Click to Download Datasheet
- :: 96W Battery Charger - 24VDC :: 2409SR
- Low Power Battery Chargers up to 8 Amps.
Nominal Battery Voltages available
6V, 12V, 24V, 36V, 48V & 72VDC - Switched Mode Battery Charger
90-264VAC Input
24VDC at 4A equivalent to an 8Amp heavy transformer type battery charger
UL/CE - Click to Download Datasheet
- :: IP54 Battery Charger 840W :: 2460SR-1
- IP54 Battery Charger can be used to charge any GEL, Sealed & Wet Lead-Acid Batteries.
- 90-264VAC Input
+28.8VDC +/- 0.2VDC at 29.5-30A
NO FAN / CONVECTION COOLING
Designed in accordance with UL,cUL & CE safety requirements. - Click to Download Datasheet
- :: IP54 Battery Charger 1000W :: 3650SR-1
- 1000W IP54 Rated fully automatic Three Stage Charger
- 90-264VAC Input
+43.2VDC +/-0.2VDC at 24.5A - 25.5A
Convection Cooled
- Click to Download Datasheet
- :: IP54 Battery Charger 1000W :: 3650SRU
- 1000W IP54 Battery Charger suitable for any Gel, Sealed or Wet lead Acid Batteries.
- 90-264VAC Input
46.5VDC +/-0.2VDC at 24.5A - 25.5A
Convection Cooled - Click to Download Datasheet

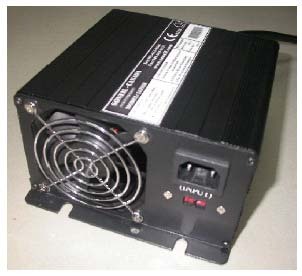

- :: 480W Battery Charger - 48VDC :: 4820SR
- Mid Range Battery Chargers available with nominal output voltages
12V, 24V, 36V & 48VDC - Switched Mode Light weight / compact size Battery Charger
115/230VAC Input
48VDC at 10A output equivalent to a 20A Heavy Transformer type charger. - Click to Download Datasheet
- :: 72V Battery Charger :: 7203SR
- 72V - 1.2A Constant Current for Gel, Lead Acid, and Sealed Lead Acid batteries
- Automatic Cut-off and then true Float. Can be left connected indefinitely without harming the battery.
- UL, cUL (CSA) and CE Listed. CISPER 11 Class B
- Input Universal (90VAC~264VAC) - Suitable everywhere in the world.
- Suitable for On-board (internal) & Off-board (external) Applications. Onboard inhibit / interlock (green wire) is included.
- Increases battery life by de-sulfating the battery.
- Many advance features described in this spec.
- Very small size and very lightweight - Click to Download Datasheet
- :: 400 Watt 12/24V Battery Charger :: PDS-12/24-400
.jpg)
- OEM Sealed Lead Acid (SLA), Gel Battery Charger 24V or 12V @ 400Watts.
- This low cost range is designed for cost effective OEM project, where a 3 stage Battery Charge is an requirements. This cost effective OEM range can be designed to meet with your exact requirements just contact sales for further information.
- Click to Download Datasheet
